Lock crimp Woven wire screen for mining quarry aggregate sifting

Large Image : Lock crimp Woven wire screen for mining quarry aggregate sifting Get Best Price

Product Details:

Place of Origin:	Hebei ,China
Brand Name:	Xingkuan Tech
Certification:	Bv ,sgs , ce , Iso
Model Number:	Lock crimp Woven wire screen for mining quarry aggregate sifting

Payment & Shipping Terms:

Minimum Order Quantity:	1sheet or 1 roll
Price:	Negotiate
Packaging Details:	Pallet , steel rope , or as per request !
Delivery Time:	7-15 working days
Payment Terms:	L, L/C, T/T
Supply Ability:	10000m2/ week

Contact Now

Detailed Product Description

Item:	Lock Crimp Woven Wire Screen For Mining Quarry Aggregate Sifting	Material:	High Tensile Spring Steel, Manganese Steel, Stainless Steel, Polyurethane.high Carbon Steel Is Better Choice For Anti-friction
Technology:	Wire Crimped Cut And Machine Weaving	Wire Diameter Range:	0.7mm-12.8mm
Aperture:	0.45mm-150mm	Width:	1-6m
Length:	1-200m ( Sheet : 2m ) , Roll (200m)	Edge Preparation:	Plain Or Without Special Edge Treament Bending Hook Hook With Wrap Plate
Highlight:	Lock Crimp Woven Metal Mesh Screen , Quarry Woven Metal Mesh Screen , Aggregate Woven Mesh Screen

Lock crimp Woven wire screen for mining quarry aggregate sifting

Quick detail :

Material :
- a)65Mn steel wire
- b)Carbon steel wire, medium carbon steel wire, high carbon steel wire
- c) Stainless steel wire: 202, 304, 310, 316, 321
Hole type: square hole, slot hole
Weave type:
a) Double crimp, single crimp, inter-crimp weave
b) Lock crimp, flat top crimp, triple shoot crimp weave
Edge type:
- plain or without special edge treament
- Bending hook
- hook with wrap plate
Wire diameter : 0.7mm-12.8mm (Tolerance+_0.03mm)
Aperture /Opening :0.5mm-150mm (Tolerance +-3%)
Roll sizes: 1x15m, 1.22x15m, 1.5x15m, 2x15m,etc
Panel sizes: 1250x1850 and 1480x2350mm,etc
Other names for woven wire screen for quarry aggregate:

Crimped wire mesh

Vibrating screen mesh

Crusher parts screen

Woven wire mesh

Mining screen mesh

Vibrating screen mesh

Woven mesh

Sieving screen mesh

Raw material screen

Plain weaving screen mesh

Square opening mesh

Features :
- Large percentage open area boosts production
- Perfect flatness
- ±3% opening tolerance
- 40% longer wear life than traditional woven wires.

Screen mesh Parameters :

Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡
Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡
3	2	10.16	12.5	4	12.32	26.99	5.72	12.7	75	11.2	18.48
3.15	1.4	5.47	12.5	5	18.14	26.99	6.3	15.14	75	12.5	22.68
3.15	2	9.86	12.7	3.05	7.5	28	5	9.62	76.2	9.53	24.22
3.18	1.22	4.3	12.7	3.76	10.91	28	6.3	14.7	76.2	9.53	13.45
3.18	1.37	5.24	12.7	4.11	12.76	28	8	22.58	76.2	12.7	23.04
3.18	1.83	8.49	12.7	4.5	14.95	28.58	5.72	12.11	80	10	14.11
3.18	2.03	10.05	12.7	4.88	17.2	28.58	6.3	14.45	80	12.5	21.45
3.18	2.34	12.6	12.7	5.26	19.56	28.58	7.94	21.92	80	12.5	37.8
3.18	2.67	15.48	13.2	3.15	7.71	30	4	5.98	85	11.2	16.56
3.35	2	9.5	13.2	4	11.81	30	5	9.07	90	12.5	19.36
3.75	2	8.83	13.2	5	17.45	30	6.3	13.89	100	11.2	14.33
3.75	2.5	12.7	14	2.5	4.81	30	7.1	17.26	100	12.5	17.64
3.97	3.05	16.83	14	4	11.29	30	8	21.39	101.6	12.7	17.92
4	2	8.47	14	5	16.71	30	10	31.75	125	12.5	14.43
4	2.5	12.21	14	5	16.71	30	10	31.75	150	12.5	12.21
4	3.15	17.62	14	6.3	24.83	31.5	5	8.7	150	12.5	22.68
4.35	2	8	14.29	4.11	11.66	31.5	6.3	13.34
4.5	2.5	11.34	14.29	4.88	15.78	31.5	7.1	16.59
4.5	2.8	13.64	14.29	5.26	17.97	31.5	8	20.58
4.5	3.15	16.47	14.29	5.72	20.77	31.5	8	20.58
4.75	2	7.53	15	5	15.88	31.5	10	30.6
4.75	2.8	13.19	15	6.3	23.66	31.5	11.2	37.31
4.75	3.15	15.95	15	8	35.34	31.5	12.5	45.1
4.76	2.03	7.71	15.88	4.11	10.73	31.5	12.5	45.1
4.76	2.34	9.79	15.88	4.88	14.57	31.75	6.3	13.25
4.76	2.67	12.19	15.88	5.26	16.62	31.75	7.19	16.86
4.76	3.05	15.13	15.88	5.72	19.24	31.75	7.94	20.17
4.76	3.43	18.24	15.88	6.3	22.73	31.75	9.53	27.94
5	1.6	4.93	16	4	10.16	31.75	10.01	30.47
5	2	7.26	16	5	15.12	31.75	11.11	36.57
5	2.5	10.58	16	5.6	18.44	34.93	4	5.22
5	2.8	12.77	16	6.3	22.6	34.93	6.3	12.23
5	3.15	15.46	16	8	33.87	34.93	7.94	18.68
5.3	2.5	10.18	16.5	2.5	4.18	34.93	11.11	34.05
5.3	3.15	14.91	17.46	3.05	5.76	35.5	8	18.69
5.56	2.67	11	17.46	3.76	8.46	35.5	10	27.91
5.56	3.05	13.72	17.46	4.88	13.54	35.5	12.5	41.34
5.6	2.8	11.85	17.46	6.3	21.21	35.5	12.5	41.34
5.6	3.15	14.4	18	4	9.24	37.5	7.1
6	2	6.35	18	5	13.8	37.5	8	17.86
6	2.5	9.34	18	6.3	20.74	38.1	7.19	14.5
6	3.15	13.77	18	8	31.26	38.1	7.94	17.39
6.3	2	6.12	19	2.8	4.57	38.1	9.53	24.22
6.3	2.5	9.02	19	5	13.23	38.1	9.53	24.22
6.3	3.15	13.34	19	5.6	16.19	38.1	10.01	26.45
6.3	4	19.73	19	6.3	19.92	38.1	11.11	31.86
6.35	2.34	8	19.05	3.05	5.35	38.1	12.7	40.32
6.35	2.67	10.04	19.05	4.88	12.64	38.1	12.7	40.32
6.35	3.05	12.57	19.05	5.26	14.45	40	4	4.62
6.35	3.43	15.28	19.05	5.72	16.78	40	8	16.93
6.35	4.11	20.51	19.05	6.3	19.88	40	8	16.93
6.47	2	6	19.05	6.3	19.88	40	10	25.4
6.7	3.15	12.79	19.05	7.94	29.66	40	10	25.4
6.87	1.6	3.84	20	5	12.7	40	12.5	37.8
7.1	2.5	8.27	20	6.3	19.17	40	12.5	37.8
7.1	2.8	10.06	20	6.3	19.17	41.28	11.11	29.92
7.1	3.15	12.29	20	8	29.03	42.5	7.1	12.91
7.1	4	18.31	20.6	2.8	4.26	42.5	8	16.1
7.5	3.15	11.83	20.6	6.3	18.74	44.45	7.19	12.71
7.94	3.43	13.14	21.2	6.3	18.33	44.45	9.53	21.37
7.94	3.76	15.35	21.2	6.3	18.33	45	6.3	9.83
7.94	4.11	17.8	21.2	7.1	22.62	45	8	15.34
7.94	4.88	23.59	21.7	6.3	18	45	10	23.09
8	2.5	7.56	22.23	4.88	11.16	45	10	23.09
8	3.15	11.3	22.23	5.26	12.78	45	12.5	34.51
8	4	16.93	22.23	5.72	14.87	45	12.5	34.51
8.5	4	16.26	22.23	6.3	17.67	47.5	8	14.65
9	2.5	6.9	22.23	6.3	17.67	50	8	14.01
9	3.15	10.37	22.23	7.19	22.32	50	10	21.17
9	4	15.63	22.23	7.94	26.54	50	10	21.17
9.5	2.5	6.61	22.25	3.15	4.96	50	12.5	31.75
9.5	2.8	8.09	22.4	5.6	14.22	50	12.5	31.75
9.5	3.15	9.96	22.4	6.3	17.56	50.8	7.94	13.63
9.5	4	15.05	22.4	6.3	17.56	50.8	9.53	19.12
9.53	3.43	11.53	22.4	7.1	21.7	50.8	9.53	19.12
9.53	3.76	13.51	22.4	8	26.74	50.8	9.53	33.03
9.53	4.11	15.73	22.4	8	26.74	50.8	10	20.89
9.53	4.88	20.99	22.4	10	39.2	50.8	12.7	32.26
9.53	6.3	31.84	23.6	5	11.1	53	8	13.32
9.7	3	9	23.6	6.3	16.86	53	10	20.16
10	3.15	9.58	23.81	5.26	12.09	56	8	12.7
10	4	14.51	23.81	5.72	14.07	56	10	19.24
10	5	21.17	23.81	7.94	25.22	56	11.2	23.71
10	6.3	30.92	25	3.15	4.48	56	12.5	28.97
10.2	2.5	6.25	25	3.15	4.48	57.15	10.01	18.95
10.7	2	4	25	4	7.01	60	8	11.95
10.6	4	13.92	25	6.3	16.1	60	10	18.14
10.6	6.3	29.83	25	6.3	16.1	60	11.2	22.37
11.11	4.5	16.48	25	8	24.63	63	10	17.4
11.11	4.88	18.91	25	8	24.63	63	11.2	21.47
11.2	2.8	7.11	25	10	36.29	63.5	7.94	11.21
11.2	3.15	8.78	25.4	3.05	4.15	63.5	12.7	26.88
11.2	4	13.37	25.4	5.26	11.46	65	8	11.13
11.2	5	19.6	25.4	5.72	13.35	65	10	16.93
11.8	2.5	5.55	25.4	6.3	15.9	65	12.5	25.6
11.8	3.15	8.43	25.4	7.94	24.01	67	12.5	24.96
11.8	4	12.86	25.4	9.53	33.02	71	8	10.29
11.8	5	18.9	25.4	10.01	35.94	71	10	15.68
11.8	6.3	27.85	26.5	6.3	15.37	71	11.2	19.38
12.5	3.15	8.05	26.5	8	23.56	75	10	14.94

Descriptions :

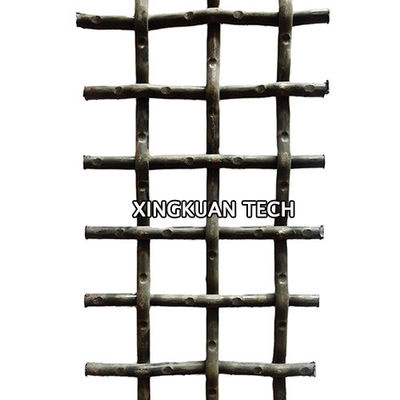

The Lock Crimp Mesh is produced via the pre-crimp technique. The warp and Shute wires are both crimped at their points of intersection and ensures that there is no wire movement in the mesh. This makes the lock crimp wire cloth a very hearty stainless steel screen mesh.
Lock Crimped Mesh is characterized by straight sections of wire connected by a well defined bump at the wire intersections, such a manner to actually lock the wires together, offering further assurance of no wire movement. Our lock crimp wire mesh is good in quality and competitive at price.

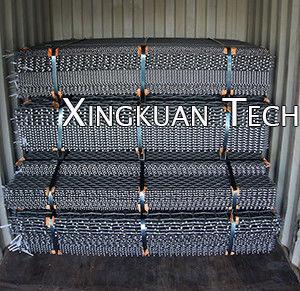

Lock crimp Woven wire screen for mining quarry aggregate sifting 0

Lock crimp Woven wire screen for mining quarry aggregate sifting 1

Typical Applications :

Mining screen in quarry and sand
Vibrating screen for machine
Spare parts of crusher

Lock crimp Woven wire screen for mining quarry aggregate sifting 3

Notice :
In addition to our standard products, we can produce custom weave products in the widths, lengths, types, shapes, sizes, quantities and combinations you need based on your specifications or equipment limitations.
