| Item: | Brass Color Continuous Filter Belt Screens For Plastic And Rubber Extrusion | Material: | Brass Color Clad Steel Wire +galvanized Iron Wire |
|---|---|---|---|
| Mesh Count: | 110mesh (110x7mesh,110x10mesh ,110x15mesh ,110x17mesh , Etc ) In Reverse Dutch | Height: | 100mm-400mm ( 228mm, 229mm, 308mm,309mm, Etc ) |
| Length: | 10m,15m,20m ,30m , 40m, 80m ,etc | Delivery Time: | Standard Size We Have Stock , Normally 1-3 Working Days |
| Sample: | Free Sample For Small Size | Edge: | Rubbed Edge |
| Highlight: | Brass Continuous Belt Filter,Rubber Continuous Belt Filter,Extrusion Continuous Belt Filter |
||

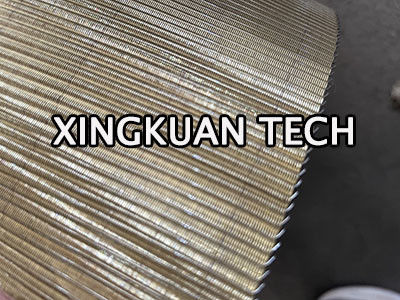

Brass color Continuous Filter Belt Screens for plastic and rubber extrusion
Descriptions :
This is the reverse of nominal dutch. The weft wires are much thicker than the warp wires. Thus the largest number of wires are found in the warp direction. This weave pattern is characterized by the greatest stability with good flow capacity aka throughput, as well as high tensile strength in the warp direction.
Quick Detail :
| Wire | Round wire or flat wire |
| belt weaving | same material , we can weave 2 type : reverse dutch and dutch type |
| surface color | same material , reverse dutch - brass yellow color , for dutch weave -black color |
| cutomerized | for the mesh and size , we can make on any special request . |
Applications :
The filter belt is fitted inside the screen changer machine having an inbuilt pressure sensor mechanism. When the filter belts gets excessively clogged due to foreign particle in the molten plastic, the back pressure inside the extrusion machine increases. like PP, PS, PVC, PET, PE, ABS, PMMA ,HDPE ,LDPE in belt style continuous screen changers.
Features :
