Product Details:
Payment & Shipping Terms:
|
| Item: | Stainless Steel Woven Wire Mesh Filter Tube | Material: | Stainless Steel Wire Mesh (SUS304 ,316 ,etc ) |
|---|---|---|---|
| Mesh Count: | Plain Weave From 1-635 Mesh ,dutch Weave Can Be Weaven Up To 500x3500 Mesh | Weaving Pattern: | Plain , Twill , Dutch . |
| Layers: | Single /double /multi-layers | Filtration Rating: | Ranges From 2μ M To 200μ M. According To The Fine Wire Mesh Inside |
| Tube Outside Diameter: | 6-300mm | Tube Length: | 10-6000mm |
| Highlight: | Stainless Steel Wire Mesh Filter Screen,Micron Filtration Wire Mesh Filter Screen,6000mm Stainless Steel Mesh Screen Filter |
||

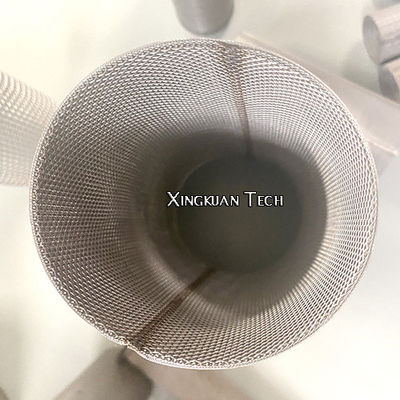

Stainless steel wire mesh filter tube for micron filtration usage
Quick details & specifications :
Tube Outside diameter : 6-300mm
Tube length :10-6000mm
Welding process : spot welding or seamless welding
Straight welding or spiral welding
Edge : without edge , with edge - wrap edge or metal flange
Below is only parts of stainless steel mesh specifications , any customerized request is available :
| SS Mesh | Wire Dia. mm | Aperture Size mm | Open Area |
| 10 X 10 | 0.711 | 1.829 MM | 51.8 |
| 14 X 14 | 0.457 | 1.357 MM | 55.9 |
| 16 X 16 | 0.457 | 1.131 MM | 50.7 |
| 20 X 20 | 0.457 | 0.813 MM | 41.0 |
| 24 X 24 | 0.376 | 0.682 MM | 41.4 |
| 30 X 30 | 0.376 | 0.531 MM | 34.2 |
| 30 X 30 | 0.310 | 0.536 MM | 40.0 |
| 40 X 40 | 0.274 | 0.361 MM | 32.3 |
| 50 X 50 | 0.193 | 0.335 MM | 43.6 |
| 60 X 60 | 0.193 | 0.230 MM | 29.8 |
| 80 X 80 | 0.122 | 0.196 MM | 37.9 |
| 100 X 100 | 0.102 | 0.152 MM | 36.0 |
| 120 X 120 | 0.091 | 0.120 MM | 31.8 |
| 150 X 150 | 0.071 | 0.088 MM | 29.6 |
| 200 X 200 | 0.050 | 0.077 MM | 36.76 |
| 300 X 300 | 0.040 | 0.045 MM | 27.83 |
| 325 X 325 | 0.035 | 0.043 MM | 30.49 |
| 400 X 400 | 0.028 | 0.036 MM | 31.25 |
| Weaving Type | Mesh counting | Absolute micron rating | Nominal micron rating |
| Plain Dutch | 12X64 | 270-290 | 200 |
| Plain Dutch | 14X88 | 220-240 | 150 |
| Plain Dutch | 16X80 | 225-235 | 140 |
| Plain Dutch | 24X110 | 115-125 | 80 |
| Plain Dutch | 30X150 | 110-112 | 63 |
| Plain Dutch | 40X200 | 70-75 | 55 |
| Plain Dutch | 50X250 | 58-63 | 40 |
| Plain Dutch | 80X400 | 40-45 | 35 |
| Twill Dutch | 30X250 | 110-120 | 53 |
| Twill Dutch | 80X700 | 35-40 | 25 |
| Twill Dutch | 120X400 | 50-55 | 40 |
| Twill Dutch | 165X800 | 25-28 | 15 |
| Twill Dutch | 200X600 | 30 | 20 |
| Twill Dutch | 165X1400 | 16-20 | 10 |
| Twill Dutch | 200X1400 | 12-14 | 5 |
Descriptions :
Stailess steel woven mesh filter tube is also called Filter Tube, Filter Cartridge, Filter Cylinder, Filter Elements ,small mesh tube , etc which is made by stainess steel wire mesh through slitting , rolling and welding into a cylinder shape to put into equipement as filter media . Single-layer welding, multi-layer welding can also be used after single-layer welding, and then the metal filter mesh tube, mesh tube, filter element, filter tube are overlapped and interspersed to form a multi-layer filter.The woven mesh also can be combinated with perforated metal mesh to be ant- high perssure and get up to a good performance in working .
Applications:
Notice :
Please offer below datas for the inquiry :
