| Item: | Custom Stainless Steel Stamped Mesh Discs And Steel Mesh Blanks | Material: | Stainless Steel 304/316L, Black Wire Cloth, Copper, Brass Etc. |
|---|---|---|---|
| Mesh: | Square From 10-500 Mesh , Dutch Upto 1800mesh | Layer: | 1,2,3,5 Layers (single Layer Or Spot Welded Multi-layer Screen Discs.or With Rim Edges.) |
| Technology Of Process: | Slitting , Punching , Spot Wedling , Rim Wrapped Edge , Pleating ,etc | Applications: | As Filter Screen In Extrusion Machine |
| Highlight: | Stamped Stainless Steel Extruder Screen,OEM Stainless Steel Extruder Screen,ODM Stainless Steel Screen |
||
Custom Stainless Steel Stamped mesh Discs and Steel Mesh Blanks
Descriptions :

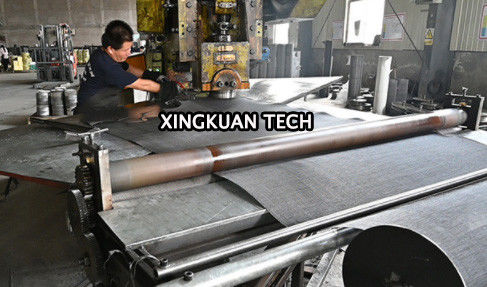

The mesh disc is weaved by stainless steel wire in high quality of 304 or 316 in wire mesh roll . It is placed on slitting machine to be slitted into small roll width .we can built new dies based on request - shapes , diameter , etc to punching on machine , if customer need several layers or frame , we have to do further process to meet the final requirement . Before we do the final order , we always offer sample to client to aprroval and before disaptch , we have strict quality control to assure smooth face or flat face , right size with very very small error , no loosing wire outside , and no burs , very good edge to assurre when you get it , you are satisfied and have a good purchase feeling .
Quick details & specifications :
Screen type :customed stamped mesh by dies
Material: stainless steel woven wire mesh (304,316,316L ,etc )
Weaving type : Plain ,Plain dutch ,Twill ,Twill dutch
Diameter :it is customed on request
Layer: single or multilayers
Mesh count : square upto 500 mesh , dutch weave /hollad weave upto 2800mesh
Shape : customerized ,any shape you offer to us .
Process technology: slitting -punching/stamping through dies - spot weld or framed by machine , packing on customerized
Notice : Below is only parts of standard mesh , customerized is always available for us !
Dutch weave parameters of standard extruder screen :
| Weaving Type | Mesh counting | Absolute micron rating | Nominal micron rating |
| Plain Dutch | 12X64 | 270-290 | 200 |
| Plain Dutch | 14X88 | 220-240 | 150 |
| Plain Dutch | 16X80 | 225-235 | 140 |
| Plain Dutch | 24X110 | 115-125 | 80 |
| Plain Dutch | 30X150 | 110-112 | 63 |
| Plain Dutch | 40X200 | 70-75 | 55 |
| Plain Dutch | 50X250 | 58-63 | 40 |
| Plain Dutch | 80X400 | 40-45 | 35 |
| Twill Dutch | 30X250 | 110-120 | 53 |
| Twill Dutch | 80X700 | 35-40 | 25 |
| Twill Dutch | 120X400 | 50-55 | 40 |
| Twill Dutch | 165X800 | 25-28 | 15 |
| Twill Dutch | 200X600 | 30 | 20 |
| Twill Dutch | 165X1400 | 16-20 | 10 |
| Twill Dutch | 200X1400 | 12-14 | 5 |
| Plain weave parameters of standard extruder screen mesh | |||
|
SS Mesh
|
Wire Dia. mm
|
Aperture Size mm
|
Open Area
|
|
10 X 10
|
0.711
|
1.829 MM
|
51.8
|
|
14 X 14
|
0.457
|
1.357 MM
|
55.9
|
|
16 X 16
|
0.457
|
1.131 MM
|
50.7
|
|
20 X 20
|
0.457
|
0.813 MM
|
41.0
|
|
24 X 24
|
0.376
|
0.682 MM
|
41.4
|
|
30 X 30
|
0.376
|
0.531 MM
|
34.2
|
|
30 X 30
|
0.310
|
0.536 MM
|
40.0
|
|
40 X 40
|
0.274
|
0.361 MM
|
32.3
|
|
50 X 50
|
0.193
|
0.335 MM
|
43.6
|
|
60 X 60
|
0.193
|
0.230 MM
|
29.8
|
|
80 X 80
|
0.122
|
0.196 MM
|
37.9
|
|
100 X 100
|
0.102
|
0.152 MM
|
36.0
|
|
120 X 120
|
0.091
|
0.120 MM
|
31.8
|
|
150 X 150
|
0.071
|
0.088 MM
|
29.6
|
|
200 X 200
|
0.050
|
0.077 MM
|
36.76
|
|
300 X 300
|
0.040
|
0.045 MM
|
27.83
|
|
325 X 325
|
0.035
|
0.043 MM
|
30.49
|
|
400 X 400
|
0.028
|
0.036 MM
|
31.25
|
Applications :
Pls offer descriptions or sample or drawings before we offer a best quotation for you
Material -
shape -
Size -
Mesh -
Quantity -
And other special request !
