| Item Name: | Carbon Steel And Stainless Steel Flat Wire Belt For Conveyor Belt Machine | Material: | Carbon Steel,stainless Steel 201 Or 304 Or 316 ,etc |
|---|---|---|---|
| Rod Diameter: | 3,4,5,6,8 Mm, Etc | Rod Pitch: | 12.7,25.4,38.1,50.8mm ,etc |
| Spiral Pitch: | 12.7-40mm | Belt Width: | 200 Mm To 4000 Mm |
| Edge Stype: | Clinched Or Welded | Applications: | Used On Conveyor Belt Machine |
| Highlight: | Carbon Steel Conveyor Belt Wire Mesh,Clinched Conveyor Belt Wire Mesh,Welded Carbon Steel Wire Mesh |
||

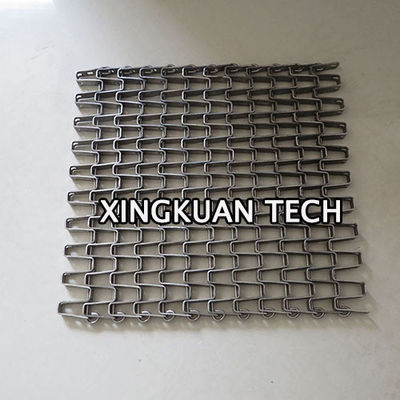

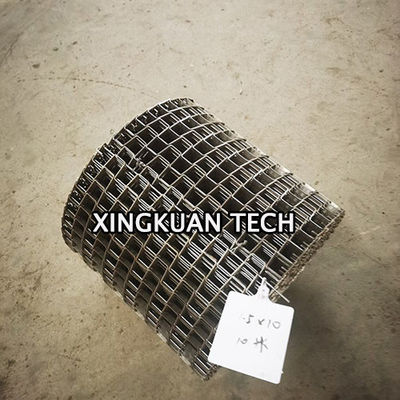

Carbon steel and stainless steel Flat Wire Belt for conveyor belt machine
Descriptions :
Flat wire belt that is available in galvanized carbon steel and stainless steel , Flat wire belt is made from cross round rod and flat strips with welded edge or clinched edge ( rod-bent edge ) .Side guard and flight are available , very little maintenance is needed .This conveyor belt, which is made of flat wires instead of weaves, is more suitable for heavy duty work compared to other weave belts. Its common areas of use are automotive parts/battery industry, kitchen manufacturing industry, manufacturing of pots/pans, packaging industry and ceramics sector. Also, thanks to its porous structure, it can be comfortably used in washing and drying lines along with cooling of plastic/rubber products. Standard duty belts are normally equipped with clinched edges to prevent shrinkage on the rods, but can also be furnished with button-head welded edge
Quick Detail :
CLINCHED EDGE WELDED EDGE
Specifications :
Below is only part of specification , we can make the belt as per request .
| Styles | Types | Mesh size | Belt width | Cross rod diameter | Flat strip (Height × Thickness) | Tension (max) | Approx. weight |
|---|---|---|---|---|---|---|---|
| Standard duty & clinched edge | FWSC-1 | 1" × 1" | 4.5" to 240" | 0.105" | 3/8" × .046" | 480 lbs./ft | 1.85 lbs./square feet |
| FWSC-2 | ½" × 1" | 4.125" to 240" | 0.105" | 3/8" × .046" | 660 lbs./ft | 2.20 lbs./square feet | |
| FWSC-3 | ½" × 1" | 4.125" to 240" | 0.105" | 3/8" × .046" | 660 lbs./ft | 2.50 lbs./square feet | |
| FWSC-4 | ¾" × 1" | 4.5" to 240" | 0.12" | 3/8" × .046" | 550 lbs./ft | 2.00 lbs./square feet | |
| Standard duty & welded edge | FWSW-1 | 1" × 1" | 3" to 240" | 0.105" | 3/8" × .046" | 480 lbs./ft | 1.85 lbs./square feet |
| FWSW-2 | ½" × 1" | 3.25" to 240" | 0.105" | 3/8" × .046" | 660 lbs./ft | 2.20 lbs./square feet | |
| FWSW-3 | ½" × ½" | 3" to 240" | 0.105" | 3/8" × .046" | 750 lbs./ft | 3.25 lbs./square feet | |
| FWSW-4 | ½" × 1" | 3.25" to 240" | 0.12" | 3/8" × .046" | 660 lbs./ft | 2.50 lbs./square feet | |
| Heavy duty & clinched edge | FWHC-1 | 1" × 1" | 10" to 192" | 0.192" | 1/2" × .062" | 1350 lbs./ft | 3.55 lbs./square feet |
| FWHC-2 | ½" × 1" | 10" to 192" | 0.192" | 1/2" × .062" | 1750 lbs./ft | 3.55 lbs./square feet |
Applications :
Features :
Notice :
Example :
