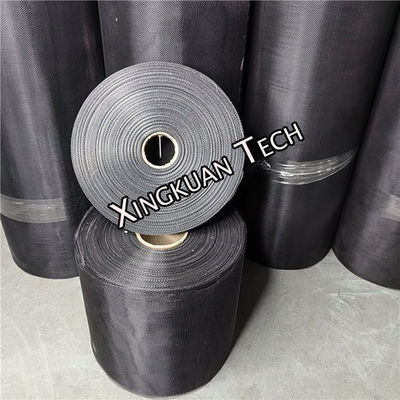

Epoxy Coated Woven Wire Mesh Pleat Spacing Mesh For Hydraulic Filters

Large Image : Epoxy Coated Woven Wire Mesh Pleat Spacing Mesh For Hydraulic Filters Get Best Price

Product Details:

Place of Origin:	Hebei ,China
Brand Name:	Xingkuan Tech
Certification:	Bv ,sgs , ce , Iso
Model Number:	Hdg Hot Dipped Galvanized Flat panel Coiled Razor Wire For Security Barrier

Payment & Shipping Terms:

Minimum Order Quantity:	1 roll
Price:	Negotiable
Packaging Details:	Paper tube inside and waterproof paper outside, then put into plywood pallets.
Delivery Time:	5-8 working days
Payment Terms:	T/T, L/C
Supply Ability:	20000 Square Meters per Day

Contact Now

Detailed Product Description

Item:	Epoxy Coated Woven Wire Mesh Pleat Spacing Mesh For Hydraulic Filters	Material:	Plain Steel ,Aluminum , Stainless Steel
Mesh:	12x10,14x14,16x16,18x14,18x16,etc	Wire Diameter:	0.1-0.3mm
Roll Width:	50-1300mm	Roll Length:	50m,80m,100m,200m,300m,400m,etc
Core Wire Diameter:	1.8mm-2.75mm (2.5mm)	Colors:	Black ,White ,Grey Is Popular ,other Colr Is Also Available
Application:	Hydraulic Filter ,Air Filter ,Window Screen ,etc
Highlight:	Hydraulic Filters Woven Wire Mesh , Epoxy Coated Woven Wire Mesh , Pleat Spacing Epoxy Coated Wire Mesh

Epoxy Coated Woven Wire Mesh Pleat Spacing Mesh for Hydraulic Filters

Descriptions :
Epoxy mesh is made by using the principle of electrostatic spraying to absorb eco-friendly epoxy resin powder on the surface of the wire mesh woven from different metal wires. After a certain period of high temperature curing, the epoxy resin powder is melted and covered on the substrate. A dense protective layer is formed on the surface of the mesh.
Epoxy powder is divided into indoor and outdoor types, and special powders can be customized and developed according to customer requirements. The substrate mesh usually includes plain steel mesh, aluminum alloy mesh and stainless steel
mesh.

Quick details & Specifications :

Epoxy mesh manufacturing standard: GB/T 17492-2019
Woven pattern: Plain wave

Substrate Mesh Material	Coating Type	Specification	Width ( mm )	Length (m)	Application
Q195	Oil Resistance	18*14/0.18	20-1500	s1000	Hydraulic Filter
Q195		18*14/0.16	20-1500	s1000
Q195		12*10/0.25	20-1500	s1000
Q195		22*10/0.16	20-1500	s1000
5154A		18*14/0.21	20-1500	s1000
5154A	Weather Resistance	17*15/0.21	20-1500	s1000	Air Filter
5154A	Weather Resistance	18*15/0.28	20-1500	s200	Window Screen
SS316		12/0.35	20-1500	s200
SS316		11/0.7	20-1500	s200
Specification, material, appearance colors all can be customized by contact us.

Applications :

Industrial epoxy mesh &civil epoxy mesh

Industrial epoxy mesh mainly refers to aluminum alloy epoxy mesh and plain steel epoxy mesh,which are mainly used asthe filter element supporting mesh,such as hydraulic filters,air filters and crude oil filters etc.to make certain good pleatingresults,give maximum air flow and also peak filtering
Civil epoxy mesh mainly refers to stainless steel epoxy mesh,which is mainly used in high-end residential andcommercial building as security window screens
