Product Details:
Payment & Shipping Terms:
|
| Item: | Reversible Dutch Weave Mesh Belt For Auto Screen Changer ,260x40mesh 180mmx10m | Material: | Stainless Steel 201,302,304,304A,316 ,Iron ,Copper Clad Steel |
|---|---|---|---|
| Mesh Count: | 72x15 , 260x40,132x17,152x24,180x16,120x16 , 110x15,110x8,110x17 ,etc | Height: | 85mm ,97mm,120mm,127mm,130mm,130mm,135mm,140mm,150mm,200mm,308mm ,etc |
| Length: | 10m,15m,20m ,30m , 40m, 80m ,etc | Delivery Time: | Standard Size We Have Stock , Normally 1-3 Working Days |
| Sample: | Free Sample For Small Size | MOQ: | 1 Roll |
| Highlight: | Reversible Dutch Weave Mesh Belt,Auto Screen Changer Filter Mesh Belt,260x40 Filter Band |
||

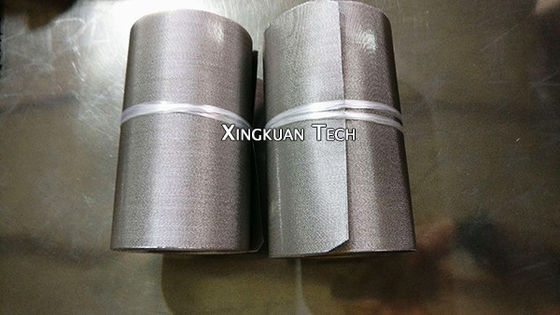

Reversible Dutch Weave Mesh belt for auto screen changer ,260x40mesh 180mmx10m
Quick Detail :
Mesh : 260x40 Size : 180mmx10m
Weight :4kg /roll Type : reversible dutch weave type (Belt screen )
Other mesh :
| Mesh per Inch (25.4mm) Warp x Weft |
Wire Diameter (mm) Warp x Weft |
Fineness of Filtering (micron) |
||
| 48 X 10 | 0.5 X 0.5 | 330 | ||
| 63 X 18 | 0.40 X 0.60 | 220 | ||
| 72 X 15 | 0.45 X 0.55 | 210 | ||
| 100 X 16 | 0.35 X 0.45 | 190 | ||
| 107 X 20 | 0.24 X 0.60 | 210 | ||
| 120 X 16 | 0.35 X 0.45 | 180 | ||
| 132 X 17 | 0.32 X 0.45 | 170 | ||
| 152 X 24 | 0.27 X 0.40 | 160 | ||
| 160 X 17 | 0.27 X 0.45 | 160 | ||
| 170 X 18 | 0.27 X 0.45 | 160 | ||
| 171 X 46 | 0.15 X 0.30 | 130 | ||
| 180 X 20 | 0.27 X 0.45 | 170 | ||
| 200 X 40 | 0.17 X 0.27 | 120 | ||
| 240 X 40 | 0.15 X 0.25 | 70 | ||
| 260 X 40 | 0.15 X 0.27 | 55 | ||
| 290 X 76 | 0.09 X 0.19 | 40 | ||
| 300 X 40 | 0.15 X 0.25 | 50 | ||
| 300 X 80 | 0.15 X 0.2 | 35 | ||
| 400 X 120 | 0.058 X 0.1 | 30 | ||
| 615 X 105 | 0.04 X 0.11 | 27 | ||
| 615 X 125 | 0.04 X 0.11 | 25 | ||
| 615 X 130 | 0.04 X 0.13 | 22 | ||
| 615 X 132 | 0.04 X 0.11 | 22 | ||
| 625 X 104 | 0.04 X 0.15 | 28 | ||
| 720 X 150 | 0.036 X 0.10 | 17 | ||
|
Technical Note: 2Reverse dutch weave (rdw ) include reverse plain dutch and reverse twill dutch . |
||||
.Descriptions :
RPD have warp wires laid as close as possible one to another with relatively thin diameters, while the weft wires are very strong - so called reversed weave
TRD are also a reversed dutch twilled type, although in a twilled form. the warp wires are distributed as with RPD, although the weft wires are knocked up in a twilled weave pattern, so as not to deform the warp wires too much. Illustration below.
The good quality Dense grain network is a kind of dutch weave mesh that is called because of his different warp wire diameter and mesh count. Reasonable collocation of wire and mesh can reach the filter density that the square mesh cannot reach. So this mesh is the fine filtration of the dense mesh. Usually, the warp wire diameter is larger than weft. But the Wire mesh filter roll for extrusion unit is on the contrary, its weft wire diameter is larger than warp.
Applications:
Widely used in aerospace,petroleum,chemical,chemical fiber,machinery,plastic products,research and plastic melt filter,molding machine belt type filter conveyor industries.
Notice : Stock , Any MOQ is ok . Sample is ok ! Delivery time : 1-2 days !
