Product Details:
Payment & Shipping Terms:
|
| Item: | Stainless Steel Mesh Belt KPZ 72x15 Reverse Dutch Weaves (RTDW) | Material: | Stainless Steel 201,302,304,304A,316 ,Iron ,Copper Clad Steel |
|---|---|---|---|
| Mesh Count: | 72x15 , 260x40,132x17,152x24,180x16,120x16 , 110x15,110x8,110x17 ,etc | Height: | 85mm ,97mm,120mm,127mm,130mm,130mm,135mm,140mm,150mm,157mm,200mm,308mm ,etc |
| Length: | 10m,15m,20m ,30m , 40m, 80m ,etc | Delivery Time: | Standard Size We Have Stock , Normally 1-3 Working Days |
| Sample: | Free Sample For Small Size | MOQ: | 1 Roll |
| Highlight: | Stainless Steel Mesh Belt KPZ,72x15 Stainless Steel Mesh Belt,Reverse Dutch Weave Mesh Filter Screen |
||

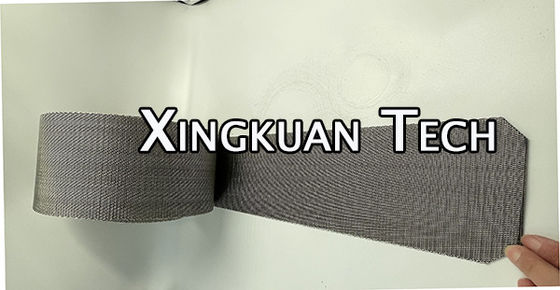

Stainless Steel Mesh Belt KPZ 72x15 150mmx10mtrs Reverse Dutch Weaves (RTDW)
Quick Detail :
72x15 mesh RDTW 150mmx10mtrs ( a variety choice of width /height )
Other mesh :
| Mesh per Inch (25.4mm) Warp x Weft |
Wire Diameter (mm) Warp x Weft |
Fineness of Filtering (micron) |
||
| 48 X 10 | 0.5 X 0.5 | 330 | ||
| 63 X 18 | 0.40 X 0.60 | 220 | ||
| 72 X 15 | 0.45 X 0.55 | 210 | ||
| 100 X 16 | 0.35 X 0.45 | 190 | ||
| 107 X 20 | 0.24 X 0.60 | 210 | ||
| 120 X 16 | 0.35 X 0.45 | 180 | ||
| 132 X 17 | 0.32 X 0.45 | 170 | ||
| 152 X 24 | 0.27 X 0.40 | 160 | ||
| 160 X 17 | 0.27 X 0.45 | 160 | ||
| 170 X 18 | 0.27 X 0.45 | 160 | ||
| 171 X 46 | 0.15 X 0.30 | 130 | ||
| 180 X 20 | 0.27 X 0.45 | 170 | ||
| 200 X 40 | 0.17 X 0.27 | 120 | ||
| 240 X 40 | 0.15 X 0.25 | 70 | ||
| 260 X 40 | 0.15 X 0.27 | 55 | ||
| 290 X 76 | 0.09 X 0.19 | 40 | ||
| 300 X 40 | 0.15 X 0.25 | 50 | ||
| 300 X 80 | 0.15 X 0.2 | 35 | ||
| 400 X 120 | 0.058 X 0.1 | 30 | ||
| 615 X 105 | 0.04 X 0.11 | 27 | ||
| 615 X 125 | 0.04 X 0.11 | 25 | ||
| 615 X 130 | 0.04 X 0.13 | 22 | ||
| 615 X 132 | 0.04 X 0.11 | 22 | ||
| 625 X 104 | 0.04 X 0.15 | 28 | ||
| 720 X 150 | 0.036 X 0.10 | 17 | ||
|
Technical Note: 2Reverse dutch weave (rdw ) include reverse plain dutch and reverse twill dutch . |
||||
.Descriptions :
KPZ is the most rigid metallic wire cloth available and is used for extremely high differential pressures as well as for applications with the highest mechanical wear. The flow rate is comparatively low and this mesh is mainly used for filter leaves and as continuous filtration belts in extrudes. Apertures in this mesh vary from 500 micron to 55 micron.
Applications:
Notice : Stock , Any MOQ is ok . Sample is ok ! Delivery time : 1-2 days !
