Product Details:
Payment & Shipping Terms:
|
| Item: | Reverse Dutch Weaving Automatic Stainless Steel Screen Belt | Material: | Stainless Steel 201,302,304,304A,316 ,Iron ,Copper Clad Steel |
|---|---|---|---|
| Mesh Count: | 72/15,120/15,132/17,150/17,200/40,260/40 E | Type: | Metal Weave Mesh |
| Weave Style: | Reverse Dutch Weave(RDW) | Technique: | Weave |
| Processing: | Weaving ,repair Edge | Delivery Time: | With 3 Working Days |
| Width: | 97mm,107mm,120mm,127mm,157mm,etc. | Length: | 10meters, 20meters,30meters ,30.5meters |
| Size: | Can Be Customized | ||
| Highlight: | Reverse Dutch Weaving Screen Belt,Automatic Mesh Filter Screen Belt 97mm,Weave Stainless Steel Wire Mesh Screen |
||

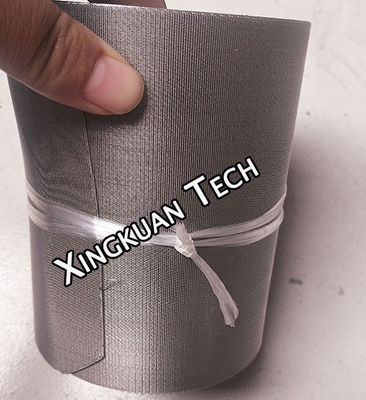

Reverse Dutch Weaving Automatic Stainless Steel Screen Belt
Quick Detail :
|
Types
|
Reverse Plain Dutch Weave and Reverse Twill Dutch Weave
|
|||
|
Materials
|
stainless steel wire 304,304L,316,316L 904 904L 310 310s 410 430 etc
|
|||
|
Standard Specs
|
* 48x10 mesh RDPW 400 nominal micron
* 72x15 mesh RDTW 250 nominal micron * 132x16 mesh RDTW 200 nominal micron * 152x30 mesh RDTW 115 nominal micron * 250x40 mesh RDTW 75 nominal micron we have different size like 180x16 mesh ,160x16 mesh ,etc .
|
|||
|
Feature
|
* High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry.
* Rubbed Edges after slitting to help with tracking for Auto-Screen changers. * Plasma and laser cut parts to help prevent edges wire fraying. * 100% Inspection of Wire Cloth for critical applications such as sand screens and aerospace applications. |
|||
|
Application
|
* Suitable for plastic wire drawing machine, stretch film machine, coating machine filters, such as plastic woven bag, plastic film.
* Used for plastic recycling filter, otherwise wafer type, square type, single or multi-layer molding machine filter. |
|||
1. Name: contrast type net. According to local differences and uses, it is also called: contrast seat mesh belt (Dutch cloth)
2. Material specifications: use high quality stainless steel wire
3. Weaving: reverse dutch weaving
4. Features: smooth surface, high hardness, continuous mesh, no deformation, high temperature resistance, corrosion resistance, flexible mesh, etc., with excellent filtration performance, good filtration precision, high load strength, high temperature resistance, low temperature resistance, etc.
5. Specifications: The general length is 10 meters long, the width is 40mm-210mm, the mesh number is 40 mesh -350 mesh, the maximum width is up to 50 cm, and the special specifications can be processed and customized.
6. Uses: It is suitable for the filtration of wire drawing machines, casting film machines and coating machines in Austrian Lenzing equipment and Germany, Japan and other countries. Domestic equipment, Lanfei 90 plastic machine, Changzhou Hengli plastic machine, Yantai plastic machine, etc., widely used in plastic woven bags, plastic film, etc., aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, scientific research and transportation, etc. industry. Automatic belt filter for plastic extruder, plastic melt filter, plastic belt filter. The products work fine, and often cooperate with filtration equipment to export to Southeast Asia, Britain, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and regions.
