| Item: | High Carbon Steel Corrugated Mesh For Crushing And Screening Equipment | Material: | Manganese Steel 65Mn,30Mn,45#,70#,72A,82B,carbon Steel,etc |
|---|---|---|---|
| Technology: | Wire Crimped Cut And Machine Weaving | Wire Diameter Range: | 0.5mm-12.5mm |
| Aperture: | 0.45mm-100mm | Edge Preparation: | Plain, Bent, Reinforced Shroud, Welded Shroud, Bolt Shroud, Etc |
| Tolerance: | +-3% | Aperture Error: | <3% |
| Usage: | Quarry,Ore , Mineral,vibrating Screen, | Applications: | Sand Screen Wire Mesh |
| Weaving Type: | Double Crimp,single Intermediate Crimp,flat Tope ,lock C | ||
| Highlight: | High Carbon Steel Corrugated Mesh Screen,Crushing Carbon Steel Mesh Screen,0.5mm Sand Screen Wire Mesh |
||

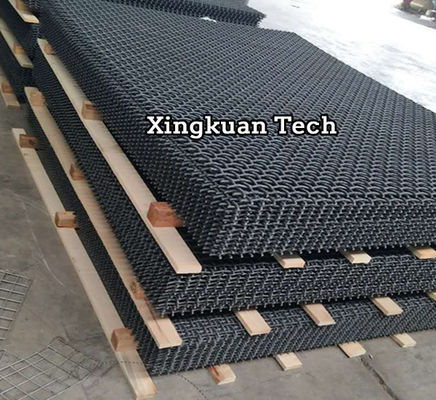

High carbon steel Corrugated mesh screen for crushing and screening equipment
Descriptions :
Corrugated mesh screens consist of a screen media, which separates fine from coarse particles as well as a drive system generating the necessary vibration or rotation in order to move, loosen and transport the screening material on the screen deck.With a broad range of applications and the ability of adaption to different feed materials and screening jobs, vibrating screens are the most widely used screen type.
Screening plays a key role in mining and mineral processing industry, where screening equipment is used in crushing and grinding circuits, for classification as well as for dewatering and de-pulping. The wide range of different screens from Xingkuan Mining Technologies is perfectly suited for these industries an offers the right screen type for every application.
Screen Specifications show :
| Name | Aperture(mm) | Wire diameter |
Crusher Screen Mesh |
3mm | 3 |
| 38mm | 9 | |
| 19mm | 7 | |
| 12mm | 5 | |
| 8mm | 5 | |
| 5mm | 3 | |
| 19mm | 7 | |
| 12mm | 5 | |
| 8mm | 5 | |
| 5mm | 3 | |
Asphalt Plant Screen |
6mm | 4 |
| 12mm | 5 | |
| 20mm | 7 | |
| 28mm | 7 | |
| 20mm | 7 | |
| as customized | ||
| No. | Grade | Chemical Composition | Wire diameter | ||
| C | Si | Mn | mm | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 2.0-6.0 |
| 2 | 50 | 0.47-0.55 | 0.17-0.37 | 0.50-0.80 | |
| 3 | 55 | 0.52-0.60 | 0.17-0.37 | 0.50-0.80 | |
| 4 | 60 | 0.57-0.65 | 0.17-0.37 | 0.50-0.80 | |
| 5 | 65 | 0.62-0.70 | 0.17-0.37 | 0.50-0.80 | |
| 6 | 70 | 0.67-0.75 | 0.17-0.37 | 0.50-0.80 | |
| 7 | 65Mn | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | 2.0-14.0 |
We are there for you and Xingkuan screening experts will help you to find the best screening equipment for your operation.
With our rich expertise and numerous references, we are able to analyze your demands and help you in making the right screen decision.
How to select the right screen?
Selecting the right screen for your operations can be quite a challenge as many parameters must be considered in order to find the right screening equipment for an application.
Thick wire will last longer than thin wire, but will give a smaller open area and will therefore pass less material per unit area.
This is the most important factor in obtaining maximum output. The larger the open area the less screen is wasted and the faster the speed of screening. This open area factor must balanced against the wire diameter to give adequate life
This is the actual opening between the wires , and is also referred to as space. Thus 10mm aperture , 4mm wire ,means the wires are 10mm apart , and the diameter of wire is 4mm
