| Item Name: | Ladder Conveyor Belt , Ladder Wire Mesh Belt For Chocolate Coating Lines | Material: | Stainless Steel 304,316 Or Other As Per Request |
|---|---|---|---|
| Wire Diameter: | 0.8mm-4.0mm | Pitch: | 1/8",1/4",3/8",1/2",3/4"(3mm-25mm) |
| Width: | 76.2mm-4000mm | Flight Style: | Single /double Picket , Bar ,tapered Bar |
| Edge Stype: | Single Loop Edge, Double Loop Edge, C-shaped Loop Edge. | Applications: | Wire Mesh Belt For Chocolate Coating Lines |
| Highlight: | Ladder Conveyor Belt,0.8mm Ladder Conveyor Belt,4.0mm Ladder Mesh Wire |
||

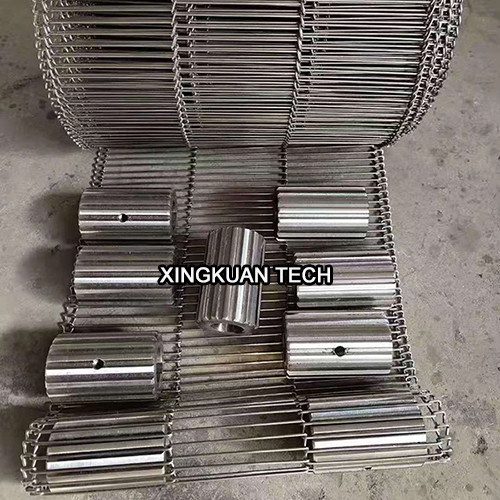

Ladder conveyor belt , ladder wire mesh belt for chocolate coating lines
Descriptions :
This conveyor belt can be made of AISI-304 or AISI 316 stainless steel or music wire. They are driven by sprockets over the full width, which ensures excellent tracking of the belt in a wide variety of load and/or speed situations.Wire mesh belts can be made in single or double selvages, and in a wide range of wire diameters,module pitches and widths, along with special finishes to meet the client's requirements.
If needed, this metal belt can also include lateral chains.Usually, they are used in high temperatures processes that may rise up to 400º C.Equiped with points, humps or throughs for special applications.
It include 2 type , one is straight , another is curved or truned or radial - to suit 90° and 180° turn conveyors
Quick Detail :
| Material: | Carbon steel, stainless steel, galvanized steel. |
|---|---|
| Type: | Standard, curved |
| Speed: | from less than 1 m/min to 20 m/min. (High speed quicker than 20 m/min may affect the longevity of the conveyor belt). |
| Temperature range: | -100 °C to 300 °C. |
| Flat flex conveyor belt: | straight, curved, |
| Opening area: | 67.5%-86% |
| Wire diameter: | 0.9-4.0mm |
| Pitch: | 4.24mm-20.32mm. Other pitches can be customized. |
| Belt width: | 76.2mm to 4267.2mm or custom width as your request. |
| Edge type: | single loop edge, double loop edge, C-shaped loop edge. |
| Straight belt -part of common size : | ||
| Pitch (mm) | Rod Diameter (mm) | Maximum Width (mm) |
| 12.7 | 3.66 | 762 |
| 15.87 | 4.47 | 914 |
| 19.05 | 4.88 | 914 |
| 25.4 | 4.88 | 914 |
| Curved/radial belt -part of common size | |||
| Pitch (mm) | Rod Diameter (mm) | Inside Radius (mm) | Available Standard Widths (mm) |
| 12.7 | 3.66 | 598.5 | 229 / 305 / 381 / 457 / 762 * |
| 15.87 | 4.47 | 762 | 305 / 381 / 457 / 610 / 762 / 914 * |
Typical Applications :
Key Features :
One of the distinctive features of these kinds of belt is the open mesh. This makes them ideal for processes where it is of benefit for the the item to be exposed such as for drying or cooling. The open mesh also means there is less residue build up and also minimal drag in bathing operations. Maintenance costs also tend to be lower as less time is required to clean these types of belt.
