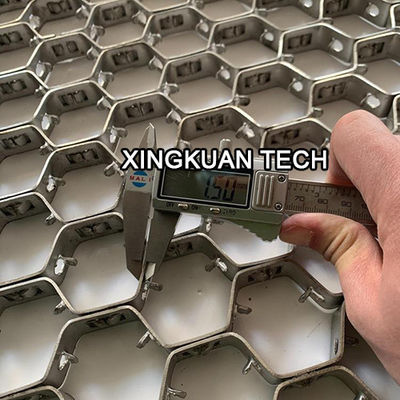

L Type hexagonal Hex Metal Mesh 1.5×20mm×45mm For Refractory Lining

Name: L Type hexagonal Hex Metal Mesh 1.5×20mm×45mm For Refractory Lining
Brand: Hebei Xingkuan wire mesh Tech co .,ltd
SKU: 1.5X20mmX45mm hexagonal hole L type Hexmesh for Refractory Lining
Price: Negotiable USD
Availability: InStock

$L Type hexagonal Hex Metal Mesh 1.5×20mm×45mm For Refractory Lining$

$L Type hexagonal Hex Metal Mesh 1.5×20mm×45mm For Refractory Lining$

Large Image : L Type hexagonal Hex Metal Mesh 1.5×20mm×45mm For Refractory Lining Get Best Price

Product Details:

Place of Origin:	Hebei ,China
Brand Name:	Hebei xingkuan
Certification:	Bv ,sgs , ce , Iso
Model Number:	1.5X20mmX45mm hexagonal hole L type Hexmesh for Refractory Lining

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Price:	Negotiate
Packaging Details:	Pallet , or wooden case
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T
Supply Ability:	1000M2/day

Contact Now

Detailed Product Description

Item:	1.5X20mmX45mm Hexagonal Hole L Type Hexmesh For Refractory Lining	Material:	Carbon Steel Q235,0Cr13, 1Cr13, 0Cr18Ni9, 1Cr18Ni9Ti, Stainless Steel 304 304 L 316 316 L 310 S.
Sheet Thickness:	1.0mm-3.0mm (12Ga,14Ga,16Ga )	Hole Size:	30-100mm
Hole Type:	Lance Or Bonding Hole	Mesh Deepth:	10-30mm
Processing:	Hole Punching , Mold Shape Punching , Manual Assembly	Applications:	For Refractory Linings In Furnaces, Reactors, Cyclones, Ducts, And Flues.
Highlight:	20mm Hex Metal Mesh , 45mm Hex Metal Mesh , Refractory Lining Hexagonal Metal Mesh

1.5X20mmX45mm hexagonal hole L type Hexmesh for Refractory Lining
Descriptions :

Hexmetal (Hexmesh) is a unique honeycombed steel designed to provide excellent retention and reinforcement of thin wall refractories. It fully complements dense hydraulic and chemically bonded refractories in resisting erosion.

Different Types of Hexmesh:

L type mesh – this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
H type mesh – instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.
Punch tabs
Hex, C & S-Bars

Range of stainless steel and carbon steel in stock and ready to go including alloy 304, 310,410S and 253MA. Other materials can be supplied on request.

$L Type hexagonal Hex Metal Mesh 1.5×20mm×45mm For Refractory Lining 0$

Typical Service Temperature of Different Material

Anchorage Material		Chemical Composition								Typical Service Temperature
AISI	DIN	C%	Si%	Mn%	P%	S%	Cr%	Ni%	others	Typical Service Temperature
304	1.4301	≤0.08	≤1.00	≤2.00	≤0.45	≤0.30	18.0—20.0	8.0—10.0	N	800℃
316	1.4401/1.4436	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	16.0—18.0	10.0—14.0	N:Mo	800℃
321	1.4541	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	17.0—19.0	9.0—12.0	Ti	800℃
310S	1.4845	≤0.08	≤1.50	≤2.00	≤0.45	≤0.30	24.0—26.0	19.0—22.0	—	1150℃
Inconel 601	2.4851	≤0.10	≤0.50	≤1.00	—	≤0.15	21.0—25.0	58.0—63.0	Al:Cu	1200℃
Inconel 800	1.4876	≤0.10	≤1.00	≤1.50	≤0.45	≤0.15	19.0—23.0	30.0—35.0	Al:Ti	1200℃
410S	1.4001	≤0.08	≤1.00	≤1.00	≤0.40	≤0.30	11.5—13.5	≤0.60	—	750℃
CARBON STEEL		VARIOUS								550℃

Common Specification Sheet

ITEM	SPECS		B	A	AF
1	1.2 X 10 X 50mm		1.2mm	10mm	40mm
2	1.2 X 15 X 50mm		1.2mm	15mm	50mm
3	1.2 X 20 X 50mm		1.2mm	20mm	50mm
4	1.5 X 10 X 50mm		1.5mm	10mm	50mm
5	1.5 X 15 X 50mm		1.5mm	15mm	50mm
6	1.5 X 20 X 50mm		1.5mm	20mm	50mm
7	1.8 X 15 X 50mm		1.8mm	15mm	50mm
8	1.8 X 20 X 50mm		1.8mm	20mm	50mm
9	1.8 X 25 X 50mm		1.8mm	25mm	50mm
10	2.0 X 15 X 50mm		2.0mm	15mm	50mm
11	2.0 X 20 X 50mm		2.0mm	20mm	50mm
12	2.0 X 25 X 50mm		2.0mm	25mm	50mm
13	2.0 X 30 X 50mm		2.0mm	30mm	50mm
14	2.0 X 30 X 80mm		2.0mm	30mm	80mm
Remark	A/F	Min: 40mm Max: 100mm
	Strip THK	Max2.0mm for stainless steel; Max3.0mm for carbon steel
	MATERIAL	A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S
