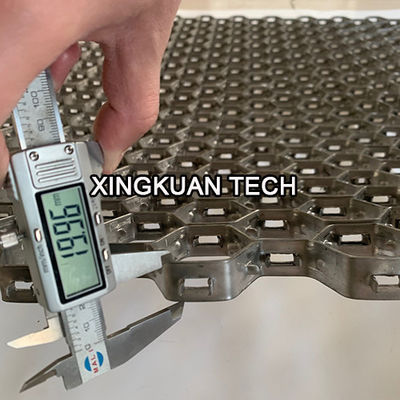

tortoise shell Stainless Steel Hexagonal Wire Mesh 0Cr13 410S Material

Large Image : tortoise shell Stainless Steel Hexagonal Wire Mesh 0Cr13 410S Material Get Best Price

Product Details:

Place of Origin:	Hebei ,China
Brand Name:	Hebei xingkuan
Certification:	Bv ,sgs , ce , Iso
Model Number:	Stainless steel 0Cr13 tortoise shell net , 410S tortoise shell net

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Price:	Negotiate
Packaging Details:	Pallet , or wooden case
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T
Supply Ability:	1000M2/day

Contact Now

Detailed Product Description

Item:	Stainless Steel 0Cr13 Tortoise Shell Net , 410S Tortoise Shell Net	Material:	Carbon Steel Q235,0Cr13, 1Cr13, 0Cr18Ni9, 1Cr18Ni9Ti, Stainless Steel 304 304 L 316 316 L 310 S.
Sheet Thickness:	1.0mm-3.0mm (12Ga,14Ga,16Ga )	Hole Size:	30-100mm
Hole Type:	Lance Or Bonding Hole	Mesh Deepth:	10-30mm
Processing:	Hole Punching , Mold Shape Punching , Manual Assembly	Applications:	For Refractory Linings In Furnaces, Reactors, Cyclones, Ducts, And Flues.
Highlight:	0Cr13 Stainless Steel Hexagonal Wire Mesh , Tortoise Stainless Steel Hexagonal Wire Mesh , 410S Wire Mesh Hexagonal

Stainless steel 0Cr13 tortoise shell net , 410S tortoise shell net
Descriptions :

High-temperature shells Net hole or screen is like as the shell of a turtle, So called Turtle shell mesh, tortoise shell net, tortoise shell mesh and tortoise mesh. The shape like Hex, For Used to Petrochemical, power and cement Industry, have Petro-Wire & Steel Hex Metal, Hex Grid Metal named.

Tortoise shell nets have big mud claws, which is widely applied as fixing of lining of heat resistant material. The operation procedure of tortoise shell net is to tack up the mesh by welding to the inner wall of boiler or hot wind pipes, then to smear heat-resistant materials.

Different Types of Hexmesh:

L type mesh – this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
H type mesh – instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.
Punch tabs
Hex, C & S-Bars

tortoise shell Stainless Steel Hexagonal Wire Mesh 0Cr13 410S Material 0

Specifications:

Material: Carbon steel 0Cr13, 1Cr13, 0Cr18Ni9, 1Cr18Ni9Ti, Stainless steel 304 304 L 316 316 L 310 s.
Hole distance: 2 cm - 6 cm.
Mesh thickness: 1 cm - 2.5 cm.
Panel thickness: 1 mm - 3 mm.
Mesh size: 30 mm 40 mm 48 mm 50 mm 60 mm 80 mm 100 mm.
Connection Type: Inner buckle lock riveting outer buckle lock riveting.

Material	Height(mm)	Thickness(mm)	Hole(mm)	SPEC.NO	Area(m2/sheet)	LXW(mm)
Carbon steel	8	1.2	40*40	8-1.2-40*40	0.6	1070*562
Carbon steel	10	1.2	40*40	10-1.2-40*40	0.6	1070*562
Carbon steel	15	1.5	50*50	15-1.5-50*50	1	1550*650
Carbon steel	15	1.75	50*50	15-1.75-50*50	1	1550*650
Carbon steel	20	1.75	50*50	20-1.75-50*50	2	1550*1300
0Cr13	10	1.2	40*40	10-1.2-40*40	0.6	1070*562
0Cr13	20	1.75	50*50	20-1.75-50*50	1.9	1550*1230
0Cr13	25	1.75	50*50	25-1.75-50*50	1.9	1550*1230
0Cr13	40	1.75	50*50	40-1.75-50*50	1.9	1550*1230
304	8	1.2	40*40	8-1.2-40*40	0.6	1070*562
304	10	1.2	50*50	10-1.2-50*50	1	1550*650
304	20	1.75	50*50	20-1.75-50*50	1.88	1540*1225
304	25	1.75	50*50	25-1.75-50*50	1.9	1550*1230
304	40	1.75	50*50	40-1.75-50*50	1.9	1550*1230
S32205	10	1.2	40*40	10-1.2-40*40	0.73	1340*590
0Cr25Ni20	10	1.2	40*40	10-1.2-40*40	0.6	1070*562
0Cr25Ni20	20	2.0	50*50	20-2.0-50*50	customized is available

Applicaions :

Tortoise Shell Mesh has gotten extensive application in chemical industry, petroleum, power generation, etc. Tortoise Shell Mesh is welded on cyclone dust collector or on the inside wall of the cylinder, poured refractory material. it is a hexagonal hole mesh, with bar steel pressed and punched, three are small holes in every border for refractory material inter flowing between the holes. The refractory material does not fall off to blockading the discharge hole.
Tortoise shell net is widely used in large device in petroleum chemical industry, especially the main part for equipment of catalyst structure, it can enhance the lining's quality in abrasion resistance and strength, wear-resisting by using tortoise-shell net. General part use carbon steel (A3F) tortoise-shell net for reinforcement, such as reactor and a secondary cyclone separator and u-shaped tube regenerators; High temperature parts use alloy (1Cr13) tortoise-shell net for reinforcement, for example regenerators and a secondary cyclone separator place.

Photo Gallery :

tortoise shell Stainless Steel Hexagonal Wire Mesh 0Cr13 410S Material 1

tortoise shell Stainless Steel Hexagonal Wire Mesh 0Cr13 410S Material 2
