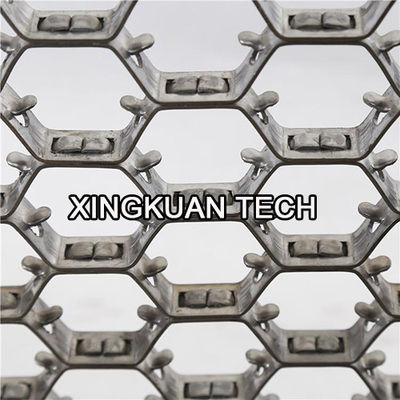

Steel Hex Metal Mesh , Hexsteel Grid Mesh AISI310S 12gauge X 2" 310S

Large Image : Steel Hex Metal Mesh , Hexsteel Grid Mesh AISI310S 12gauge X 2" 310S Get Best Price

Product Details:

Place of Origin:	Hebei ,China
Brand Name:	Hebei xingkuan
Certification:	Bv ,sgs , ce , Iso
Model Number:	AISI310S 12gauge X 2" 310S Hex Steel Metal ,Hexsteel Grid mesh

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Price:	Negotiate
Packaging Details:	Pallet , or wooden case
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T
Supply Ability:	1000M2/day

Contact Now

Detailed Product Description

Item:	FAISI310S 12gauge X 2" 310S Hex Steel Metal ,Hexsteel Grid Mesh	Material:	Carbon Steel Q235,0Cr13, 1Cr13, 0Cr18Ni9, 1Cr18Ni9Ti, Stainless Steel 304 304 L 316 316 L 310 S.
Sheet Thickness:	1.0mm-3.0mm (12Ga,14Ga,16Ga )	Hole Size:	30-100mm
Hole Type:	Lance Or Bonding Hole	Mesh Deepth:	10-30mm
Processing:	Hole Punching , Mold Shape Punching , Manual Assembly	Applications:	For Refractory Linings In Furnaces, Reactors, Cyclones, Ducts, And Flues.
Highlight:	310S Hex Metal Mesh , Lance Hex Metal Mesh , 30mm hex mesh metal

AISI310S 12gauge X 2" 310S Hex Steel Metal ,Hexsteel Grid mesh
Descriptions :

HexSteel(also named hexmesh, hexmetal) is a hexagon shaped grid used in the installation of thick linings. Hexmetal supports the lining and prevents slumps. It retards erosion, corrosion, cracking, blistering, pitting or collapse thereby lengthening the life of the lining. Hexmetal is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the steel shell and the armored surface. The slots permit passage of the castable which forms a key between adjacent cells. Available in standard and lance pattern.

Different Types of Hexmesh:

L type mesh – this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
H type mesh – instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.
Punch tabs
Hex, C & S-Bars

Steel Hex Metal Mesh , Hexsteel Grid Mesh AISI310S 12gauge X 2" 310S 0

Specifications:

Material: Carbon steel 0Cr13, 1Cr13, 0Cr18Ni9, 1Cr18Ni9Ti, Stainless steel 304 304 L 316 316 L 310 s.
Hole distance: 2 cm - 6 cm.
Mesh thickness: 1 cm - 2.5 cm.
Panel thickness: 1 mm - 3 mm.
Mesh size: 30 mm 40 mm 48 mm 50 mm 60 mm 80 mm 100 mm.
Connection Type: Inner buckle lock riveting outer buckle lock riveting.

Material	Height(mm)	Thickness(mm)	Hole(mm)	SPEC.NO	Area(m2/sheet)	LXW(mm)
Carbon steel	8	1.2	40*40	8-1.2-40*40	0.6	1070*562
Carbon steel	10	1.2	40*40	10-1.2-40*40	0.6	1070*562
Carbon steel	15	1.5	50*50	15-1.5-50*50	1	1550*650
Carbon steel	15	1.75	50*50	15-1.75-50*50	1	1550*650
Carbon steel	20	1.75	50*50	20-1.75-50*50	2	1550*1300
0Cr13	10	1.2	40*40	10-1.2-40*40	0.6	1070*562
0Cr13	20	1.75	50*50	20-1.75-50*50	1.9	1550*1230
0Cr13	25	1.75	50*50	25-1.75-50*50	1.9	1550*1230
0Cr13	40	1.75	50*50	40-1.75-50*50	1.9	1550*1230
304	8	1.2	40*40	8-1.2-40*40	0.6	1070*562
304	10	1.2	50*50	10-1.2-50*50	1	1550*650
304	20	1.75	50*50	20-1.75-50*50	1.88	1540*1225
304	25	1.75	50*50	25-1.75-50*50	1.9	1550*1230
304	40	1.75	50*50	40-1.75-50*50	1.9	1550*1230
S32205	10	1.2	40*40	10-1.2-40*40	0.73	1340*590
0Cr25Ni20	10	1.2	40*40	10-1.2-40*40	0.6	1070*562
0Cr25Ni20	20	2.0	50*50	20-2.0-50*50	customized is available

Applicaions :

As refractories, hex steel mesh has Flexibility, high strength and erosion resistant characteristics. Hex steel mesh is an excellent choice of refractory linings in furnaces, reactors, cyclones, ducts and flues. It is mainly used in power plant, cement plant, Steel, petroleum, chemical industry, power generation and other large devices. The hex metal can largely improve the heat erosion and abrasion resistance.
Hex mesh used for floors, hex mesh provides long term protection for armor applications in industrial floors. Specifically: Loading docks, ramps, high traffic aisles for forklifts and trucks, hot floors for foundry, forge and steel mills, refuse disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads will benefit with Hex mesh.
Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration. Hex metal and flex metal refractory linings are both flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.

Photo Gallery :

Steel Hex Metal Mesh , Hexsteel Grid Mesh AISI310S 12gauge X 2" 310S 1
